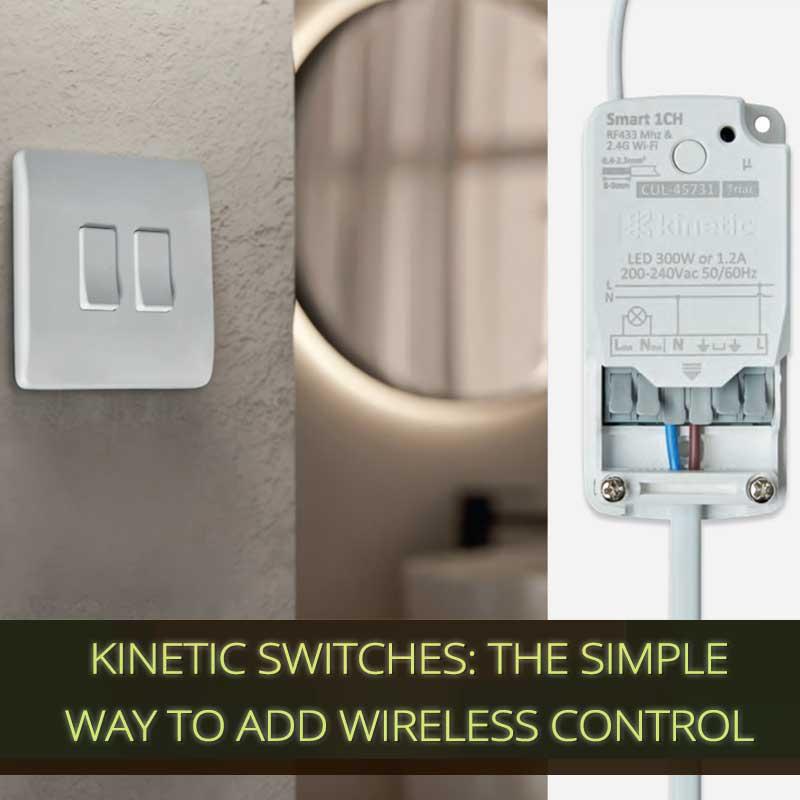

Kinetic Switches: The Simple Way to Add Wireless Control

Kinetic switches generate their own power from each press, sending a wireless signal to a receiver—so there’s no battery and no switch-wire. That means fast, flexible installation and the freedom to position a switch almost anywhere (walls, tiles, glass). The latest Forum Kinetic range is IP65 rated, making selected models suitable for bathrooms and other moisture-prone areas, while still looking neat with a standard UK faceplate footprint (86 × 86 × 15.8 mm).

What Is a Kinetic Switch?

A kinetic switch is a self-powered, wireless wall switch that converts the mechanical energy of a button press into a radio signal. That signal is received by a paired in-circuit receiver, which switches (and, with the right receiver, dims) your lighting. Forum’s Kinetic system offers an indoor range of up to ~25M and ~80M in open space. You can connect multiple switches to each receiver. With switching only or dimmable and Wi-Fi receivers that can provide smart control via an App or voice control (Amazon Alexa / Google Home).

Forum Kinetic — What You Need to Order

Choose your receiver from the standard (wired into the lighting circuit):
- CUL-40038 — 1-Channel RF On/Off Receiver, max 5 A / 300 W LED.
- CUL-40039 — 1-Channel Smart RF On/Off Receiver (RF + app), max 5 A / 300 W LED.
- CUL-40040 — 1-Channel Smart + Dimmable RF On/Off Receiver (RF + app + dimming), max 0.8 A / 100 W LED.Or Professional series with quick-fit connectors:
- CUL-45728 - 1 Channel RF On/Off Receiver, max. 10A / 1000W LED.
- CUL-45729 - 1 Channel + Smart RF On/Off Receiver max. 10A / 1000W LED
- CUL-45730 - 2 Channel RF On/Off Receiver max. 2x6A / 2x 600W LED
- CUL-45731 - 1 Channel + Smart + Dimmable RF On/Off Receiver max. 1.3A / 300W LED
Pick your kinetic switch style (battery-free wall control):
- Forum Kinetic Self-Powered Wall Switches (IP65 bathroom-suitable models)
- Slimline Switch in black or white finishes.
- Premium Decorative - dimmable or non dimmable. These can also be ordered in separate parts with the surround and grid switch, which is the MK version.
- Grid Kinetic Switches available for use with MK grid system or Click Scolmore.

Or the Forum RF Electric to Kinetic Wall Switches which are wired into an existing lighting circuit.

Why Choose Forum?

IP65 switches for bathrooms and other moisture-prone spaces.
Flexible pairing: control one receiver from up to 10 switches.
Smart options: Smart lighting receivers add App (Tuya) + voice control (Alexa / Google Home).
Neat fit & finish: standard UK plate size with multiple finishes, plus slimline and plated grid aesthetics.

Quick Ordering Steps

Decide on/off only or dimming (choose CUL-40040 or Pro CUL-45731).
Decide if you want app/voice control (choose CUL-40039 for non dim, CUL-40040 for dimmable or Pro CUL-45731).
Select your switch style/finish.
Install the receiver inline with the light circuit, pair the switch, then mount the switch where you want it.

Order as a Kit

CUL-44552 is a kinetic switch kit which contains CUL-40038 on/off receiver and CUL-42495/CUL-42499 white slimline switch with surround. kinetic switch starter kit

Bathroom Suitability (IP65)

Forum’s IP65 kinetic switches offer protection against dust and water jets, making them suitable for bathroom zones where moisture resistance is required. Always follow local wiring regulations and check zone, IP and load compatibility when planning your installation. As the switches are waterproof and wire-free you can place them anywhere apart from inside the bath tub.

Forum Kinetic Wireless Switches

Q&A

Q) How many Forum RF wireless receivers can be connected to a single 1-gang switch? A) You can pair up to 10 switches to 1 receiver, but not the other way round. Q) How do you pair two receivers separately to a 2-gang switch, as both switches currently turn one receiver on and off? A) You can’t pair two receivers to the same switch. The supported method is the reverse: multiple switches can be paired to one receiver (not multiple receivers to one switch).

Tip: For dimming, choose CUL-40040 and ensure your lamps/drivers are dimmable and compatible with RF dimming. For simple on/off circuits, use CUL-40038 (RF) or CUL-40039 (RF + app/voice). Further reading from page 10 in the Forum Lighting brochure:
